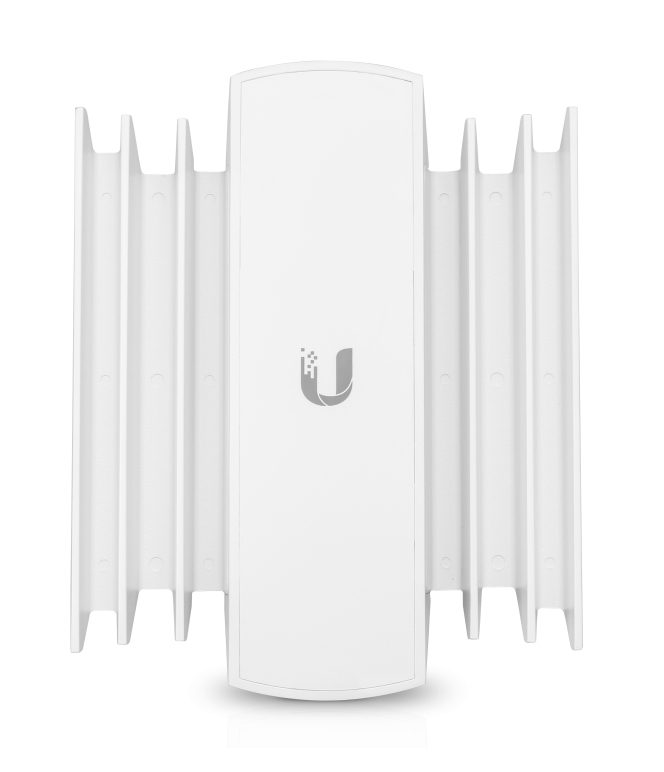

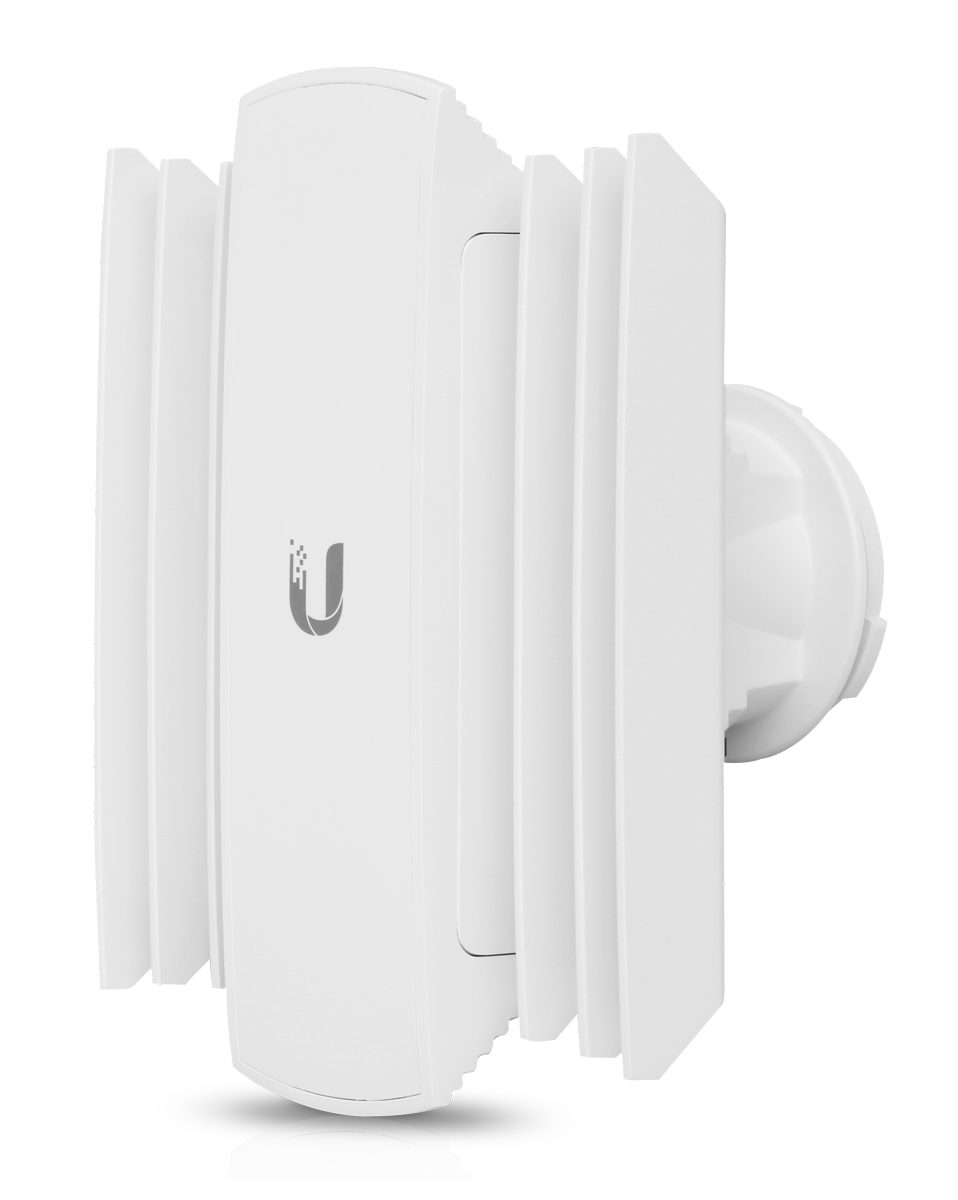

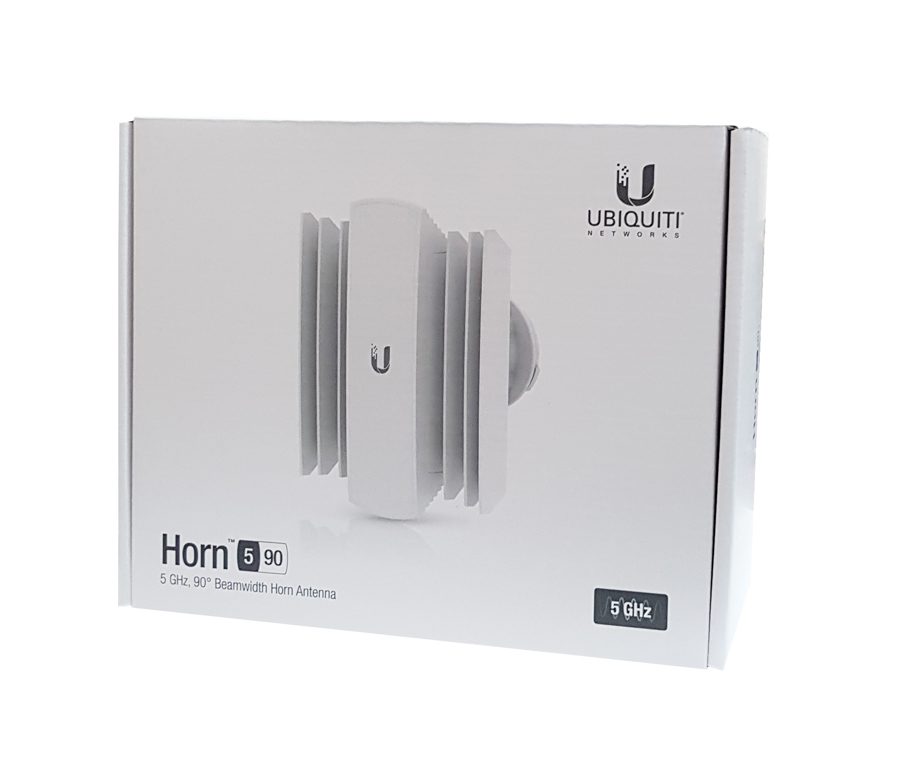

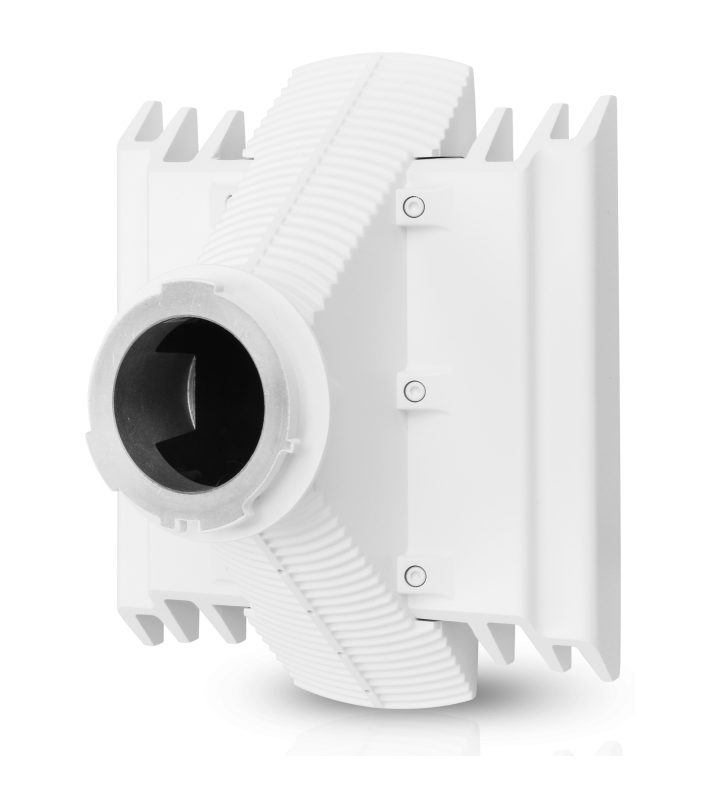

UBIQUITI Beamwidth Horn Antenna HORN-5-90, 5GHz, 13 dBi, 90°
124,96€
UBIQUITI Beamwidth Horn Antenna HORN-5-90, 5GHz, 13 dBi, 90°
Τεχνικά χαρακτηριστικά:
Dimensions: 152.1 x 186.8 x 113.2 mm
Weight: 920g
Frequency Range: 5.15 – 5.85 GHz
Compatible Radios: IsoStation/PrismStation/airFiber AF-LTU
Gain: 13 dBi
HPOL Beamwidth: 90°
VPOL Beamwidth: 90°
Elevation Beamwidth: 45°
Polarization: Dual-Linear
Cross-Pol Isolation: 17dB
Max.VSWR: 2:1
Wind Loading(with PrismStation): 46 N @ 200 km/h (10.34 lbf @ 125 mph)
Wind Survivability: 200 km/h(125 mph)
Διαθέσιμο στον προμηθευτή
(Αποστολή 1-2 εργάσιμες ημέρες)
UBIQUITI Beamwidth Horn Antenna HORN-5-90, 5GHz, 13 dBi, 90°
Τεχνικά χαρακτηριστικά:
Dimensions: 152.1 x 186.8 x 113.2 mm
Weight: 920g
Frequency Range: 5.15 - 5.85 GHz
Compatible Radios: IsoStation/PrismStation/airFiber AF-LTU
Gain: 13 dBi
HPOL Beamwidth: 90°
VPOL Beamwidth: 90°
Elevation Beamwidth: 45°
Polarization: Dual-Linear
Cross-Pol Isolation: 17dB
Max.VSWR: 2:1
Wind Loading(with PrismStation): 46 N @ 200 km/h (10.34 lbf @ 125 mph)
Wind Survivability: 200 km/h(125 mph)
Εγγύηση: 12 μήνες
Επιπλέον πληροφορίες
| Βάρος | 1,220 kg |
|---|---|
| Διαστάσεις | 20,0 cm |
| Κατασκευαστής | |
| Κατηγορία |
